Quick Details:
- Place of Origin: China
- Brand Name: SHANAN
- Model Number: VDF
- Certification: CE, ISO
- Warranty: 12 Months
- Tunnel Size: 400mm(W)*120mm(H)
- Material: Stainless Steel
- Connection Production Line: Support
- Reject Optional: Push Rod And Flap Drop
- Conveyor Belt: Modular Chain Conveyor
- Machine Structure: Full Structure Takes Of Stainless 304
Description:

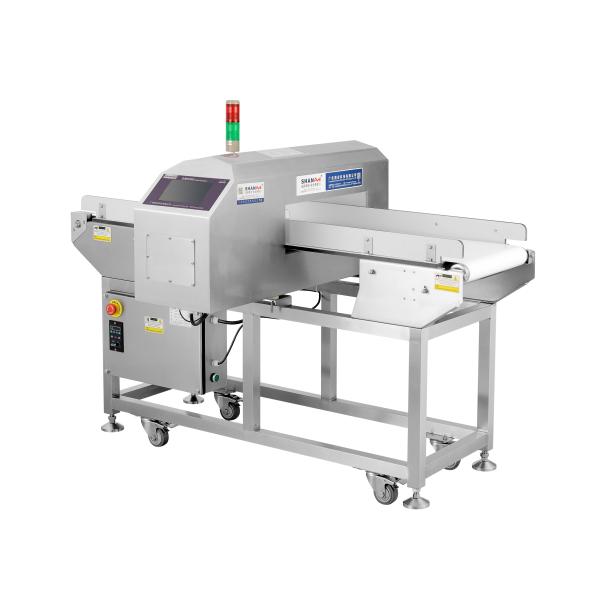

The Automatic Conveyor Belt Food Grade Metal Detector is designed to detect metal impurities that are lost or mixed into raw materials or products in the food industry, toys, and plastics industries. It has extremely high detection sensitivity and anti-jamming ability, making it suitable for highly demanding product industries. The machine is made of stainless steel and has a modular chain conveyor.
Parameters:
- Voltage and Power: 220V 50Hz 90W
- Load Ability: 5-25KG conveyor belt running speed: 25-30m/min or customized various
- Height from the Earth: 650mm±50mm can be customized
- Machine Size (mm): L1520mm×W830mm×H1000mm if customized, it will be according to the customized size
- Machine Weight: Around 250KG if customized, the weight will be different
- Detection Sensitivity:
- Fe(Φmm): ≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0
- Non-Fe(Φmm): ≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
- 304Sus(Φmm): ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Features:
- Dual-channel metal detection system with extremely high detection sensitivity and anti-jamming ability
- Coil with a rectangular aperture (no points)
- ADLINE microprocessor controller
- Joint-body PU (polyurethane) Conveyor
- Two-way signal detection circuit technology
- Liquid crystal display operations in English and visualization
- Adjustment function of product effect
- Memory and learning function
- Completed by the digital signal processing circuit can detect all metal objects, adjusting the simple, stable, and reliable
- Special transport mechanism designed for the maxi-Size sensitivity of metal detectors
- Flexible modular design can be customized according to different requirements
- Mirror stainless steel with an open transport system, easy to clean
- Meet the requirements of IFS and HACCP certification
- With superior shock interference
Application:
The Automatic Conveyor Belt Food Grade Metal Detector is suitable for use in the following industries:
- Food/Beverage
- Packaging
- Plastic/Rubber
- Recycling
- Textiles
- Logging/Wood
- Lubrication
